Connect your GM MDI or MDI2 interface to a vehicle's 16-pin OBD-II diagnostic port with this 5 ft Wirenest main DLC cable. It is an aftermarket replacement for Bosch EL-52100-1 / 1699200366, with the 26-pin connector configuration used by GM MDI and MDI2 interfaces.
Designed for GM MDI and MDI2
Interface-specific wiring: Built for the GM MDI / MDI2 26-pin configuration.
5 ft cable length: Connects the diagnostic interface to the vehicle's OBD-II DLC.
Shop-ready construction: Molded connectors, reinforced strain relief, and shielding for diagnostic communication.
Replacement references: Bosch EL-52100-1 and 1699200366.
Compatibility
For GM MDI and GM MDI2 interfaces using the specified 26-pin connection. Supports the cable connection used in GM Techline, GDS2, and J2534 pass-thru workflows when paired with the appropriate interface and software.
Important: This cable is wired specifically for GM MDI / MDI2. It is not a universal 26-pin diagnostic cable and is not compatible with other 26-pin diagnostic interfaces. Match the interface and replacement part number before ordering.
Specifications
Brand: Wirenest
Part number: WN-VDT-BH-EL52100
Length: 5 ft

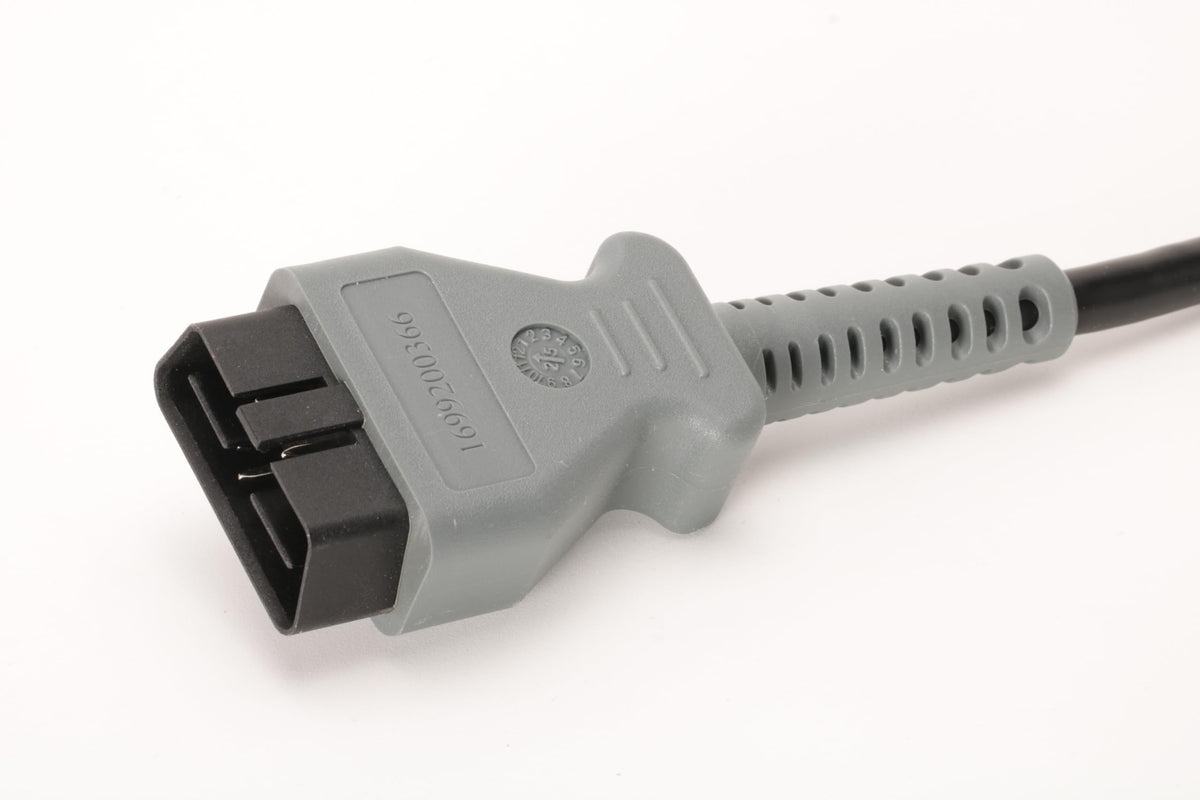

Vehicle connector: 16-pin OBD-II (J1962), male

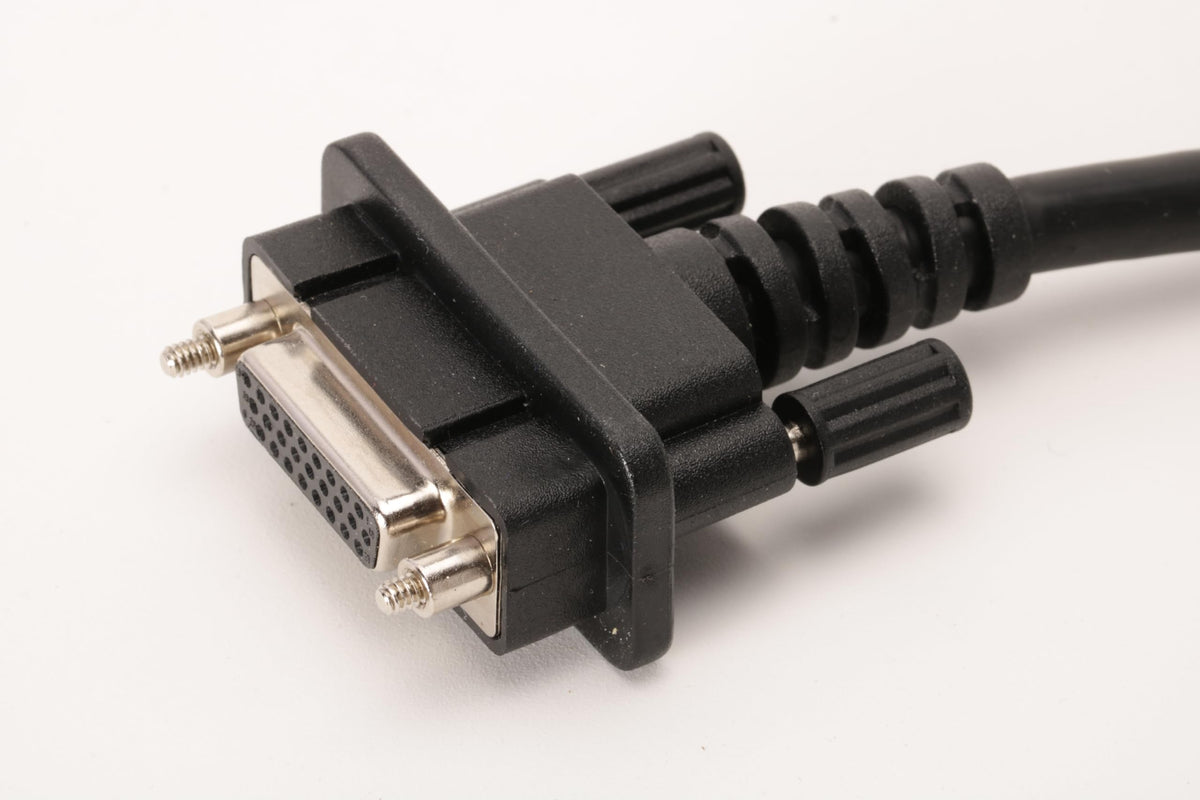

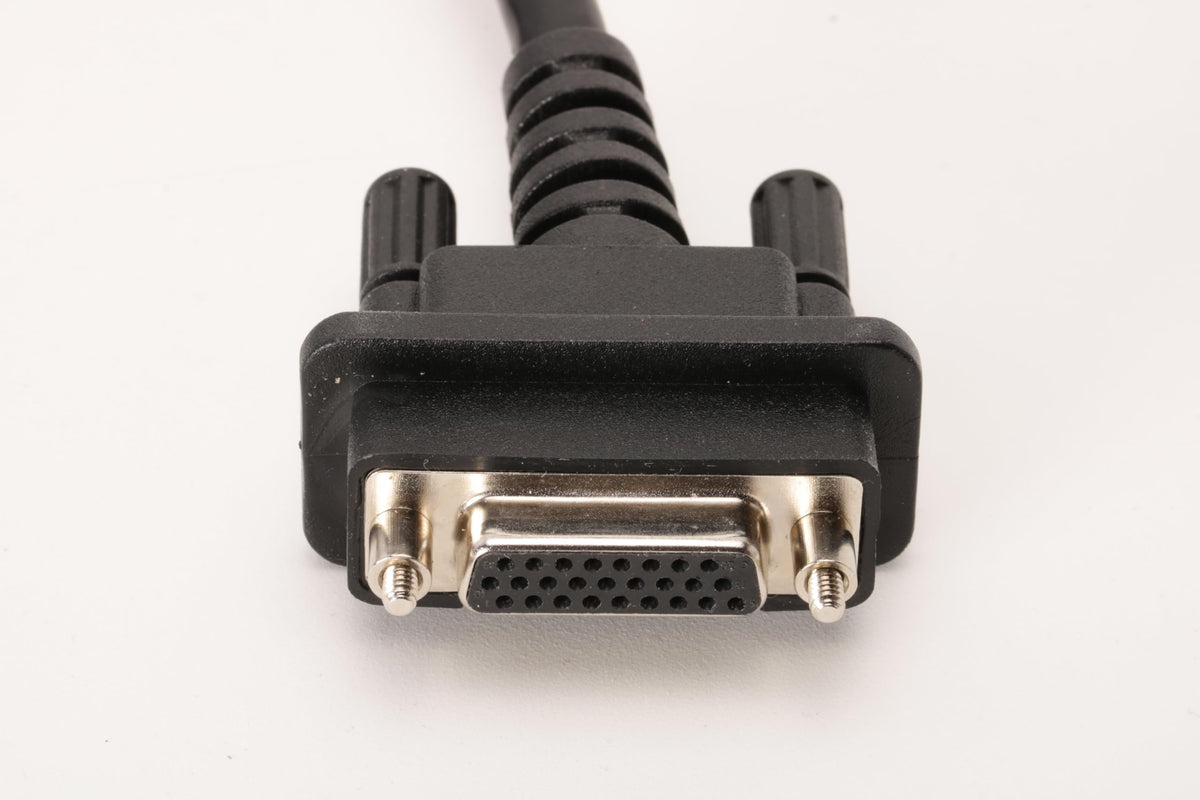

Interface connector: 26-pin GM MDI / MDI2, female
Cable color: Black
Condition: New
What's included
One 5 ft Wirenest GM MDI / MDI2 diagnostic cable. Diagnostic interface and software are not included.
This is a Wirenest aftermarket replacement cable. Bosch and GM part numbers identify compatibility.
